This interface / audio adapter allows you to play music in formats such as MP3, WMA, WAV, and FLAC from a USB stick in CD quality through several car stereos equiped with Quadlock connection.
The interface features a built-in Bluetooth module that enables wireless music streaming and hands-free calling. The interface is operated via the included remote control.
Product Features:
- Integrated Bluetooth module for wireless music streaming (A2DP) in digital quality with control via wireless remote control. Suitable for streaming audio from music, videos, navigation, podcasts, etc., from your smartphone through the car speakers. Compatible with streaming services like Spotify, Deezer, and Pandora.
- Hands-free calling (carkit) functionality Automatic dimming during incoming and outgoing calls and resuming.
- Supports USB sticks up to 32GB. Compatible with USB 2.0 and 3.0. Operated via the remote control. Built-in high-quality Hi-Fi decoder with perfect support for the following audio formats: MP2, MP3 (up to 320Kbit/s bitrate), WMA, FLAC (8, 16, 24 bit), ACC / MP4 / M4A, WAV, AIF, AIFC.
- Memory function for last playback position — resumes playback automatically when the radio is turned off and on again.
- Integrated 4x 20 Watt PRO Audio High Power 4 Channels Sound Power Amplifier.
- Shock and interference resistant.
- LED status indicator.

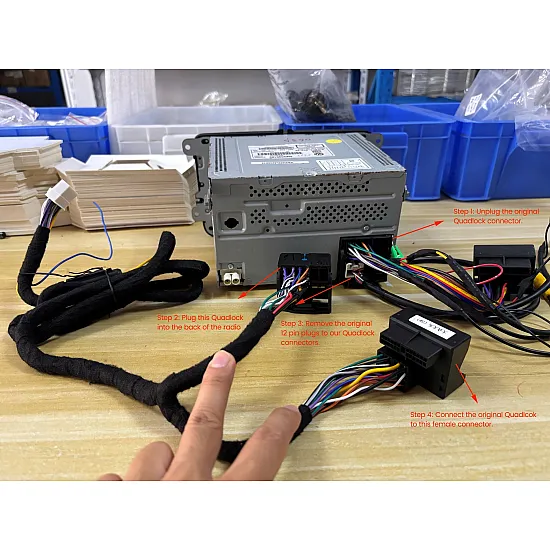

- Simple Plug and Play installation without damaging any of the vehicle's original parts using Quadlock wiring.
- Interface (module) dimensions: 100 x 75 x 25mm.
Note:
Actually, the MN-706 module is an amplifier kit. The working principle is to intercept the sound source from the headunit (FM, CD or Tape), precess it through the power amplifier chip of this interface and then deliver the high quality sound to the car's speakers.

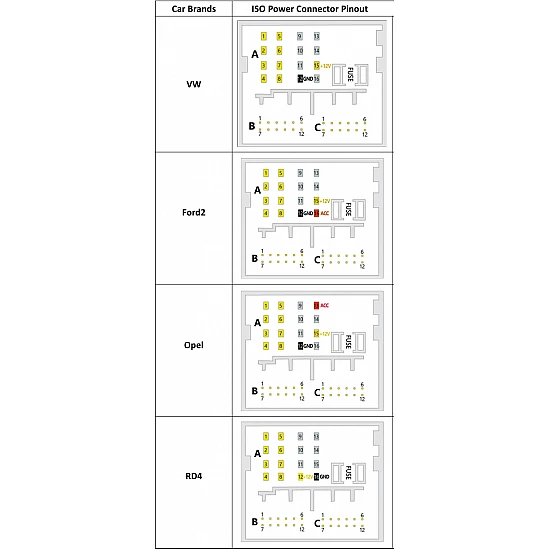

In the market Quadlock pinout to speakers are all same. There is only a little difference in power pinout, most of which is covered by this interface's default wiring. In theory, as long as the power wires are connected correctly, this module will work.

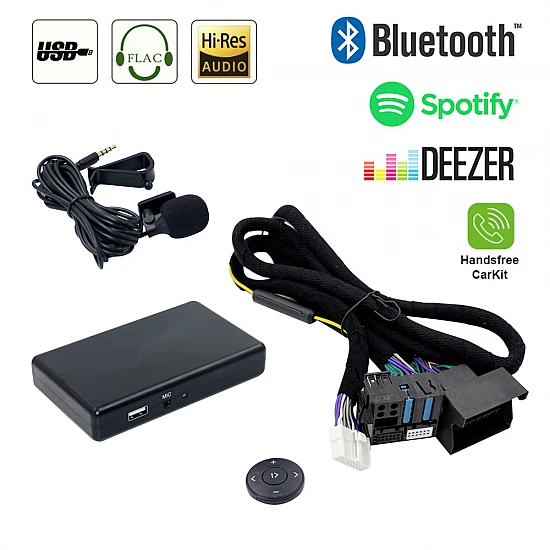

Scope of Delivery:
- The Quadlock interface
- Remote control
- Microphone, cable length 270 cm
- Wiring harness
- User manual in English
- Invoice
- 2-year warranty
