Bluetooth streaming + hands-free car kit + USB + AUX interface / adapter for 6+6 pin Toyota car radios

Bluetooth / USB / AUX interface ( MN-BUA-TOY2 ) for factory Toyota car radios with a 6+6 pin CD changer connection .

This interface makes it possible to play music from a mobile phone or other device with Bluetooth support in CD quality through your car radio.

The interface / audio adapter also has an AUX IN audio connection, so that all external sound sources (MP3 players, iPod, iPhone, iPad, PSP and mobile phones) can be connected via a 3.5 mm jack input.

This interface behaves like a CD changer and is also recognized as such by your car radio. This maintains the full functionality of your car. The interface / adapter is operated simply via the buttons on your steering wheel or via those on your car radio.

The integrated Bluetooth module makes it possible to make hands-free telephone calls and to stream music wirelessly from a mobile phone or other connected Bluetooth device.

Product features:

• Plug & Play
• Integrated Bluetooth module with support for:
  • Hands-free telephoning (HFP). Operation takes place via your original car radio or steering wheel buttons (AVRCP). Record by pressing ">>" button (fast forward) on the radio or steering wheel button and hang up by pressing "<<" button (rewind) on the radio or corresponding steering wheel button
  • Stream music wirelessly (A2DP), also via Spotify. Operation takes place via your original car radio or steering wheel buttons (AVRCP). Fast forward via ">>" button on the radio / steering wheel; Rewind via "<<" button on the radio / steering wheel
  • Supported profiles: A2DP, AVRCP, HFP, SPP, GATT, ATT and multi profiles
• High quality Bluetooth chip. Sound transmission without distortion according to High Definition Standard
• Current stabilizer with integrated interference filter for clear sound
• Support for USB sticks up to 32GB (recommended up to 8GB). Support for USB 2.0 and 3.0. Operation takes place via your original car radio or steering wheel buttons: Track Up / Down, Play / Pause, Fast Forward / Fast Reverse. Built-in high-quality Hi-Fi decoder with perfect support for the following audio files: MP2, MP3 (up to 320Kbit/s bit rate), WMA, FLAC (8, 16, 24 bit), ACC / MP4 / M4A, WAV, AIF, AIFC
• Connection of external sound sources possible via AUX IN using the supplied AUX cable
• Memory for the last playback position, which resumes playback when the radio is switched on and off
• Fast charger for mobile devices via the second USB port (2A)
• LED status indicator
• Shock and interference resistant
• No loss of quality or interference (as with FM transmitters) thanks to the direct connection
• Easy installation, without damage to the original parts of the car

This interface / audio adapter supports the following Toyota car radios (not all images are available):

• Toyota 10812
• Toyota 11816, 11817, 11828
• Toyota 16852, 17828
• Toyota 12821
• Toyota 13803, 13829
• Toyota 17006
• Toyota 17424
• Toyota 50320
• Toyota 50323
• Toyota 50339
• Toyota 51825
• Toyota 53810, 53812, 53815
• Toyota 53816, 53818
• Toyota 53830, 53831

• Toyota 53903
• Toyota 56827
• Toyota 58816
• Toyota 58826, 58827
• Toyota 86180-B4020/B4021
• Toyota A51806
• Toyota A51829
• Toyota A56828
• Toyota A56829
• Toyota A56831
• Toyota A56832
• Toyota A56833
• Toyota A56835
• Toyota ND3T-W55 (36052)
• Toyota P2868
• Toyota P3809
• Toyota W13804, W13805, W13830
• Toyota W53822, W53824
• Toyota W53827, W53828
• Toyota W53900, W53901, W53903, W53904, W53905
• Toyota W58810, W58811
• Toyota W58814, W58816, W58818
• Toyota W58824, 58828
• Toyota 13801, W13801, W13802
• Toyota W58830, W58831, W58832
• Toyota B9000, B9001, B9002
• Toyota B9005, B9012
• Toyota B9017
• Toyota B9028
• Toyota Land Cruiser P3743
• SUZUKI PA68LA (Panasonic)
  SUZUKI PA68LO (Panasonic)

Remark:

Supported car radios are usually found in the following Toyota models*:

For information about disassembling your car radio, click here .

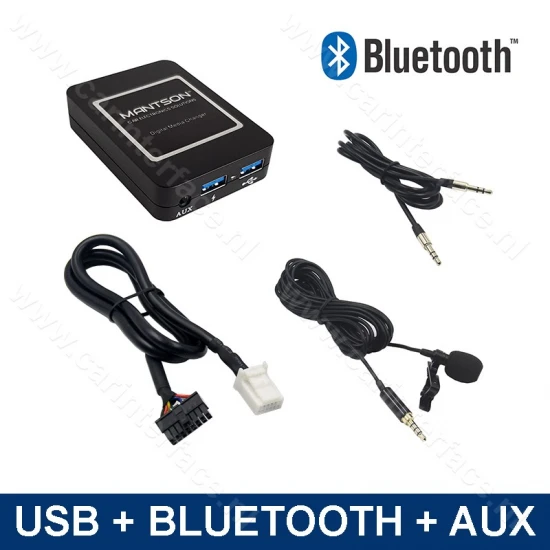

Scope of delivery:

• The interface
• Connection cable interface -> radio, cable length approx. 75cm

• Microphone with gold-plated contacts, cable length approx. 2m

• AUX cable with gold-plated contacts, cable length approx. 1m

• User manual in English
• 2 year warranty
• Invoice
