With this Bluetooth streaming / car kit module you can enjoy your favorite music that can be played wirelessly from a mobile phone or another Bluetooth device via your original Ford car radio with active AUX functionality.
The module also has hands-free calling / car kit functionality.
Product features:
- High quality Bluetooth chip. Sound transmission without distortion according to High Definition Standard
- Stream music wirelessly (A2DP), also via Spotify, Deezer.
- Hands-free calling / car kit (HFP)
- Music and telephony controls take place via your smartphone
- The radio must be in AUX mode to make phone calls or stream music
- Current stabilizer with integrated interference filter for clear sound
- Shock and interference resistant
- No loss of quality or interference (as with FM transmitters) thanks to the direct digital connection
- Easy installation, without damage to the original parts of the car
- Completely copper wire (tinned).
NB!
- There are two versions of connections to 6000 CD radios: FD and FD12P . This Bluetooth adapter has an FD connector. Adapter with an FD12P connector can be found here
- This adapter only works with radios equipped with an AUX button on the front of the radio (not CDDJ).
The following Ford models in combination with the factory car radios with an AUX button are supported:
Ford > C-MAX > 2006-2010 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > Fiesta > 2001-2008 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > Fiesta > from 2008 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > Fiesta > from 2008 > TravelPilot EX
Ford > Focus / Focus C-MAX / Focus Coupe-Cabriolet > 2001-2004 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > Focus / Focus C-MAX / Focus Coupe-Cabriolet > 2001-2004 > NX navigation system with touch screen
Ford > Focus / Focus C-MAX / Focus Coupe-Cabriolet > 2001-2004 > TravelPilot EX
Ford > Focus / Focus C-MAX / Focus Coupe-Cabriolet > 2001-2004 > TravelPilot FX
Ford > Focus / Focus C-MAX / Focus Coupe-Cabriolet > 2004-2010 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > Focus / Focus C-MAX / Focus Coupe-Cabriolet > 2008 > all
Ford > Focus / Focus C-MAX / Focus Coupe-Cabriolet > 2009 > all
Ford > Focus / Focus C-MAX / Focus Coupe-Cabriolet > 2010 > all
Ford > Focus / Focus C-MAX / Focus Coupe-Cabriolet > 2011 > all
Ford > Focus / Focus C-MAX / Focus Coupe-Cabriolet > from 2005> all
Ford > Focus / Focus C-MAX / Focus Coupe-Cabriolet > from 2010 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > Fusion > 2006 > all
Ford > Fusion > 2007 > all
Ford > Fusion > 2008 > all
Ford > Fusion > 2009 > all
Ford > Fusion > 2010 > all
Ford > Fusion > 2011 > all
Ford > Fusion > 2012 > all
Ford > Fusion > from 2/2006 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > Fusion > from 2/2006 > TravelPilot EX
Ford > Galaxy > from 08/2006 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > Galaxy > from 08/2006 > NX navigation system with touch screen
Ford > Galaxy > from 08/2006 > TravelPilot EX
Ford > Galaxy > from 08/2006 > TravelPilot FX
Ford > Ka > from 2008 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > Kuga > From 2008 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > Kuga > Van 2008 > NX navigation system with touch screen
Ford > Kuga > Van 2008 > TravelPilot FX
Ford > Mondeo > 2000-2007 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > Mondeo > 2000-2007 > TravelPilot EX
Ford > Mondeo > from 2007 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > Mondeo > from 2007 > NX navigation system with touch screen
Ford > Mondeo > from 2007 > TravelPilot FX
Ford > S-MAX > from 5/2006 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > S-MAX > from 5/2006 > NX navigation system with touch screen
Ford > S-MAX > from 5/2006 > TravelPilot FX
Ford > Tourneo > from 2006 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > Transit > from 2006 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Ford > Transit > from 2006 > TravelPilot EX
Ford > Transit Connect > from 2002 > 5000 C / 6000 CD / 6000 CDC / Sony CD Radio / Sony 6-disc CD radio
Not compatible with the following factory radio/navigation systems:
- 5000 RDS E-ON
- 6000 CD RDS E-ON
The necessary port is located on the back of the radio. The following 2x key sets can be used to disassemble most of the radios mentioned:
http://www.carinterface.nl/radio-demontage-hulpstuk_yt-key02
Installation:
The necessary connection is located on the back of the radio. The black 12-pin connector is connected to the AUX port of the radio at the back of the radio.
The black wire must then be connected to ground and the red wire to the
switched (interrupted via ignition lock) +12V. Possibly to tap the wiring of the radio using cable thieves or soldering. The microphone should be installed in a logical location (as far as possible from the speakers to prevent echo effect) and connected to the Bluetooth module.

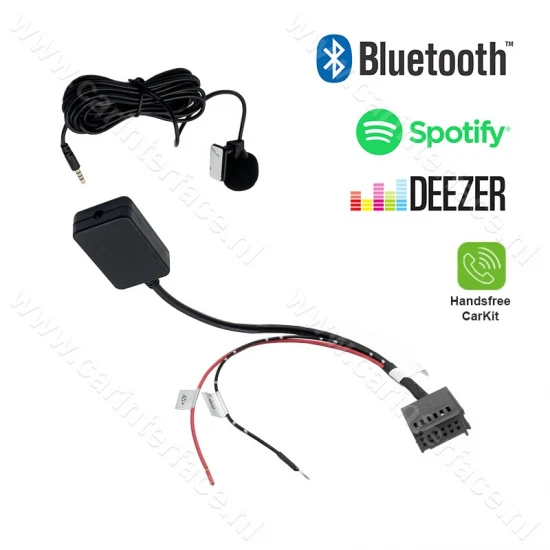

Scope of delivery:
- The interface
- Microphone with 2m cable
- 2 year warranty
- Invoice
Please check that the AUX port on your radio visually matches the connector on this Bluetooth interface before placing an order!
