Yatour Bluetooth interface / audio adapter with AUX input for Mazda car radios (YT-BTA-MAZ1)

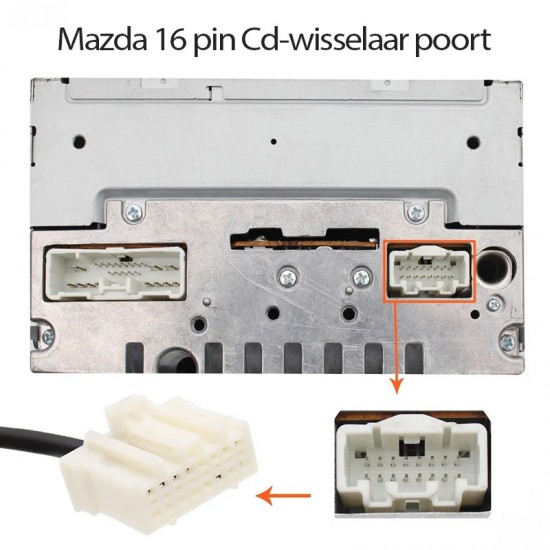

Yatour Bluetooth interface / audio adapter ( YT-BTA-MAZ1 ) for factory Mazda car radios with a 1 6-pin CD changer connection .

Latest version interface. Only with us 2 year warranty!

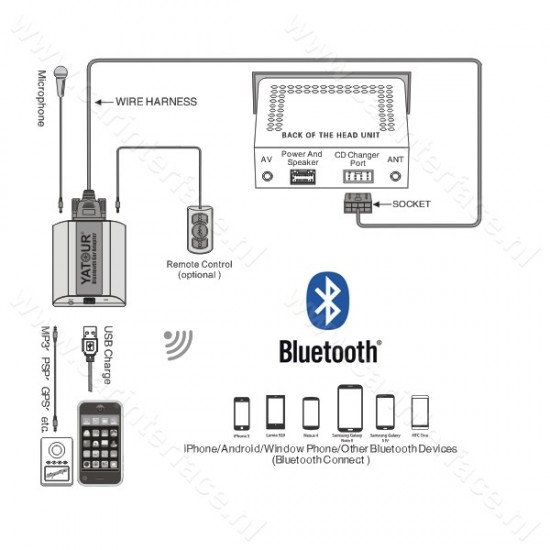

This interface makes it possible to play music from a mobile phone or other device with Bluetooth support in CD quality through your car radio. The interface / audio adapter also has an AUX IN audio connection, so that all external sound sources (MP3 players, iPod, iPhone, iPad, PSP and mobile phones) can be connected via a 3.5 mm jack input.

This interface behaves like a CD changer and is also recognized as such by your car radio. This maintains the full functionality of your car. The interface / audio adapter is operated simply via the buttons on your steering wheel or via those on your car radio.

The integrated Bluetooth module makes it possible to make hands-free telephone calls and to stream music wirelessly from a mobile phone or other connected Bluetooth device.

Product features:

• Plug & Play
• Integrated Bluetooth module with support for wireless music streaming (A2DP), also via Spotify and Deezer
• Hands-free telephoning (HFP). Record/hang up via radio or steering wheel buttons
• No loss of quality or interference (such as with FM transmitters) thanks to the direct connection
• Operation takes place via your original car radio or steering wheel buttons (AVRCP). Track up/down, Play/Pause, Fast Forward/Fast Reverse
• Connection of external sound sources possible via AUX IN
• Auto resume playback when switching from FM to Yatour (A2DP)
• Charging mobile devices via the USB port. Please note: USB port is only for charging and not for music!
• LED status indicator
• Shock and interference resistant
• Easy installation, without damage to the original parts of the car

This interface / audio adapter supports the following Mazda car radios:

Comments:

1. No compatibility with Mazda 5 radio type: 14797325
2. No compatibility with active Satellite radios or navigation systems.
3. Mazda 6 car radios manufactured between 2003 and September 2005 must be modified.
   A conductor bridge (jumper) must be soldered to the circuit board of the car radio at location L716 .
4. RX-8 radio firmware version must be v9.55 or newer (excluding v9.81 or v10.1).
5. No compatibility with Mazda 2 CR-YM0270K radio.

Supported car stereos are typically found in the following Mazda models*:

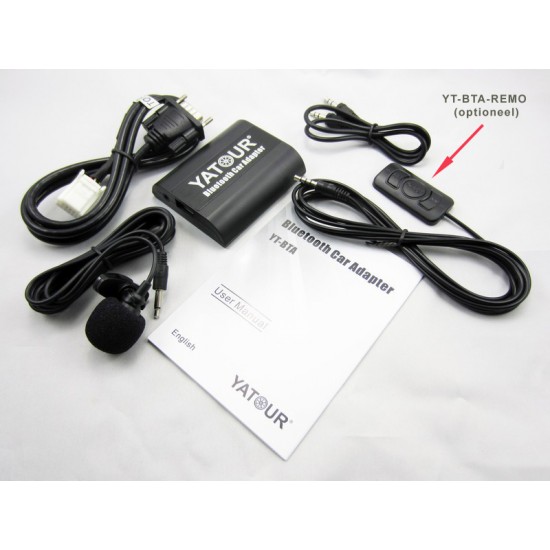

Scope of delivery:

• The interface

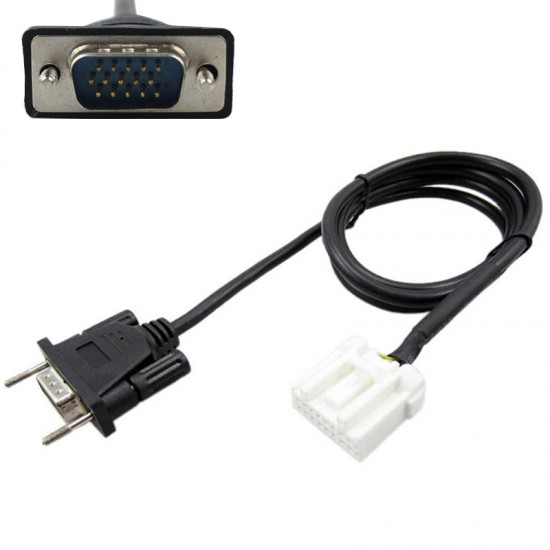

• Connection cable interface -> radio, cable length 1m
• Microphone, cable length 2m
• AUX cable, cable length 50cm
• User manual in English
• 2 year warranty
• Invoice
