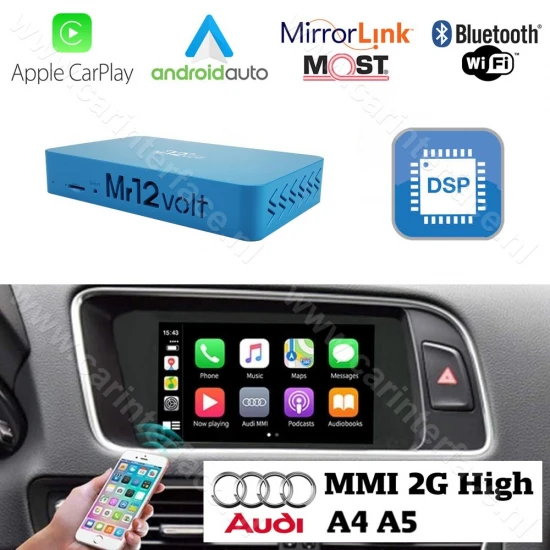

Audi CarPlay / Android Auto / Mirrorlink Interface with DSP for Audi A4 (8K) and A5 (8T) with MMI 2G High (MOST)

This Apple CarPlay, Google Android Auto, Mirrorlink interface / adapter with DSP is suitable for Audi MMI 2G High infotainment systems of Audi A4 (8K) and A5 (8T).

Suitable Audi models with MMI 2G High system:

• Audi A4 (8K) 2008 - 2009
• Audi A5 (8T) 2007 - 2009

NB:

MMI 2G Low / Basic infotainment systems (red / black screen) are not suitable.

Characteristics

• The most advanced Apple CarPlay, Google Android Auto (wired and wireless) interface on the market
• Miracast / Mirrorlink wireless (image from the smartphone is projected on the car screen)
• Integrated Bluetooth module for wireless music streaming (A2DP) in digital quality and control via MMI buttons. Support for title / artist name / album display on the display of the MMI system. Suitable for streaming sounds from played music, videos, navigation, podcasts, etc. on your smartphone through the speakers. Suitable for playing Spotify, Deezer, Pandora, iTunes, YouTube...
• Hands-free calling (car kit) functionality and control via the MMI buttons (AVRCP)
• USB connection for playing audio and video files
• Forward camera and reversing camera inputs (cameras are not included)
• Support for Apple Lossless music streaming
• Siri activate via control button "Voice command"
• The only one of its kind where audio runs via fiber optic (MOST) and not via AUX as with competitors. This guarantees crystal clear sound
• DSP chip with 15 bar equalizer
• 2x integrated antennas (WiFi and Bluetooth)
• Everything remains original, operation via MMI buttons
• 100% Plug and Play, no wire cutting or soldering

Installation example

https://www.youtube.com/watch?v=CmrSCZtfEyE

Technical specifications

• Operating temperature: -20 to +80 degrees
• DAC resolution: 18Bit
• MP3 bit rate: 8 - 384 kbit
• Voltage: 10 - 14.6V DC
• Power consumption: 450mA (700mA when charging a smartphone)
• S/N ratio: 95dB
• Total Harmonic Distortion: 0.1%
• Frequency range: 20Hz - 20KHz

MMI versions:

Which version MMI do I have? -> Check
