Bluetooth / USB / AUX interface / audio adapter for Ford car radios (MN-BUA-FRD1)

Bluetooth interface / audio adapter ( MN-BUA-FRD1 ) for factory Ford car radios with a 12-pin CD changer connection.

This interface makes it possible to play music from a mobile phone or other device with Bluetooth support in CD quality through your car radio.

The interface / audio adapter also has an AUX IN audio connection, so that all external sound sources (MP3 players, iPod, iPhone, iPad, PSP and mobile phones) can be connected via a 3.5 mm jack input.

This interface behaves like a CD changer and is also recognized as such by your car radio. This maintains the full functionality of your car. The interface / adapter is operated simply via the buttons on your steering wheel or via those on your car radio.

The integrated Bluetooth module makes it possible to make hands-free telephone calls and to stream music wirelessly from a mobile phone or other connected Bluetooth device.

Product features:

• Plug & Play

• Integrated Bluetooth module with support for:
  • Hands-free telephoning (HFP). Operation takes place via your original car radio or steering wheel buttons (AVRCP). Record by pressing ">>" button (fast forward) on the radio or steering wheel button and hang up by pressing "<<" button (rewind) on the radio or corresponding steering wheel button
  • Stream music wirelessly (A2DP), also via Spotify. Operation takes place via your original car radio or steering wheel buttons (AVRCP). Fast forward via ">>" button on the radio / steering wheel; Rewind via "<<" button on the radio / steering wheel
  • Supported profiles: A2DP, AVRCP, HFP, SPP, GATT, ATT and multi profiles
• High quality Bluetooth chip. Sound transmission without distortion according to High Definition Standard
• Current stabilizer with integrated interference filter for clear sound
• Support for USB sticks up to 32GB (recommended up to 8GB). Support for USB 2.0 and 3.0. Operation takes place via your original car radio or steering wheel buttons: Track Up / Down, Play / Pause, Fast Forward / Fast Reverse. Built-in high-quality Hi-Fi decoder with perfect support for the following audio files: MP2, MP3 (up to 320Kbit/s bit rate), WMA, FLAC (8, 16, 24 bit), ACC / MP4 / M4A, WAV, AIF, AIFC
• Connection of external sound sources possible via AUX IN using the supplied AUX cable
• Memory for the last playback position, which resumes playback when the radio is switched on and off
• Fast charger for mobile devices via the second USB port (2A)
• LED status indicator
• Shock and interference resistant
• No loss of quality or interference (as with FM transmitters) thanks to the direct connection
• Easy installation, without damage to the original parts of the car

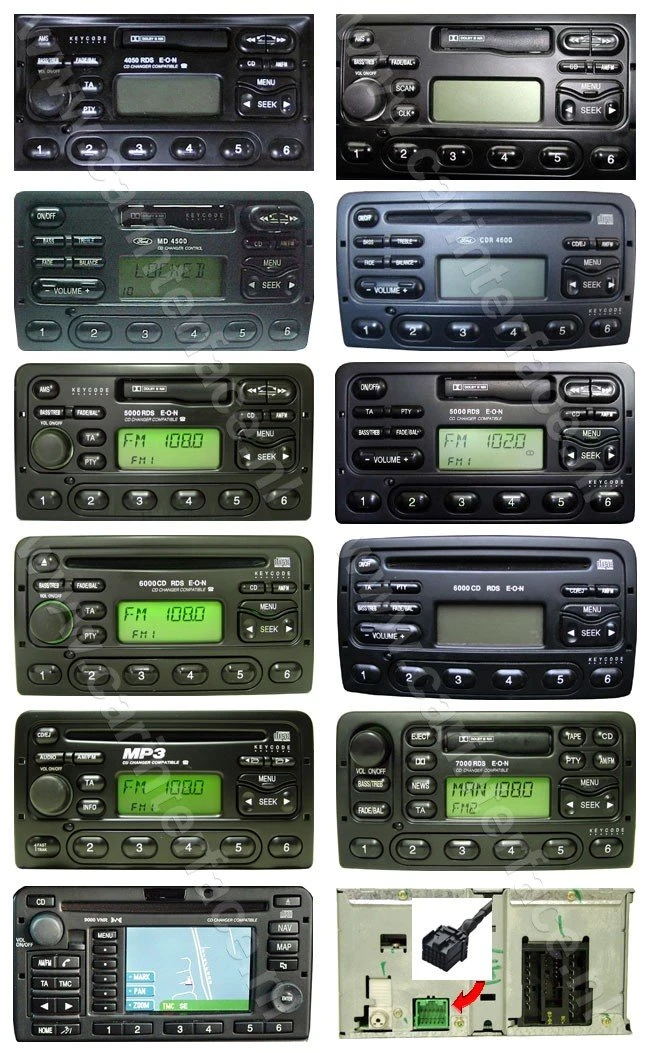

This interface adapter supports the following Ford car radios:

• 4050 RDS EON
• MD4500
• CDR4600
• 5000RDS EON
• 6000CD RDS
• 6000CD RDS EON
• 6000 MNE MP3
• 6000CD MP3
• 7000RDS EON
• 9000 VNR

Supported car radios are usually found in the following Ford models*:

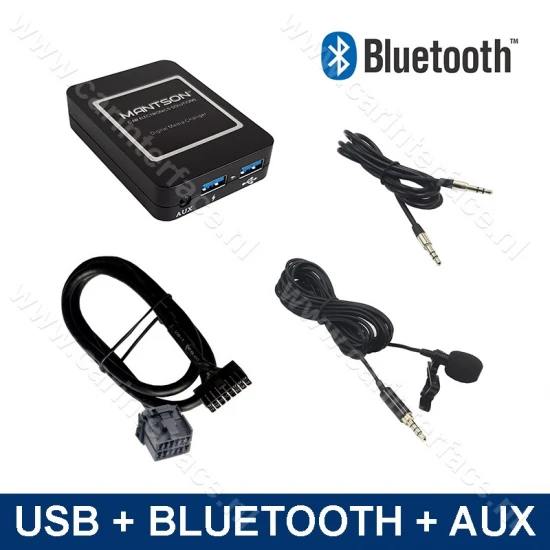

Scope of delivery:

• The interface

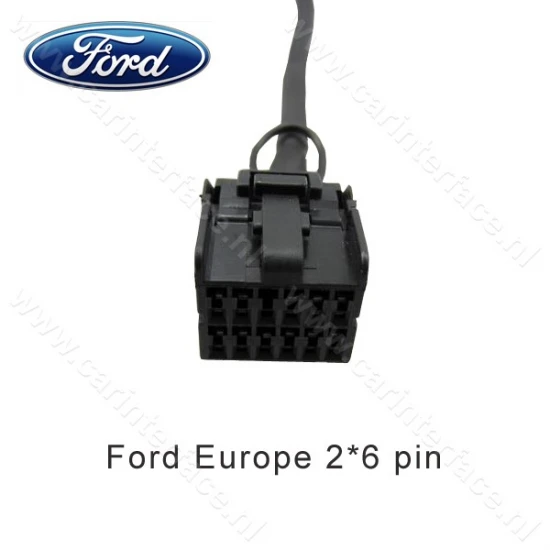

• Connection cable interface -> radio, cable length approx. 75cm
• Microphone with gold-plated contacts, cable length approx. 2m
• AUX cable with gold-plated contacts, cable length approx. 1m
• User manual in English
• 2 year warranty
• Invoice
