Bluetooth streaming interface / audio adapter for RD3 Peugeot car radios, 8-pin connection

With this Bluetooth module (interface / audio adapter) you can enjoy your favorite music that can be played wirelessly from a mobile phone or another Bluetooth device via your original Peugeot car radio with an 8-pin CD changer connection.

The necessary CD changer connection is located on the back of the radio.
The following disassembly keys can be used to disassemble most Peugeot radios:

Radio removal bracket, set No. 4

This interface behaves like a CD changer and is also recognized as such by your car radio. This maintains the full functionality of your car. The interface / adapter / module is operated via the buttons on your steering wheel (if present) or via those on your car radio.

Product features:

• Integrated Bluetooth module with support for wireless music streaming (A2DP), also via Spotify , Deezer , iTunes , YouTube and other music sources

• High quality Bluetooth chip. Sound transmission without distortion according to High Definition Standard
• Operation takes place via your original car radio or steering wheel buttons (AVRCP). Fast forward via ">>" button on the radio / steering wheel; Rewind via "<<" button on the radio / steering wheel
• Current stabilizer with integrated interference filter for clear sound
• LED Power Status Indicator
• Shock and interference resistant
• No loss of quality or interference (as with FM transmitters) thanks to the direct connection
• Completely copper wire (tinned) (winter-resistant)
• Easy installation, without damage to the original parts of the car.
• Only suitable for streaming music and NOT for calling!

This interface / audio adapter supports the following Peugeot car radios:

• RB1
• RD1
• Philips RB2
• RD2 / RD3
• RB3
• Siemens/VDO RD3-01, PSARCD100
• RD3-00
• VDO RD3-01, PSARCD111
• RB2-00

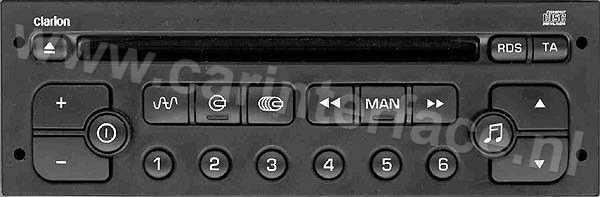

• Clarion RD3-01
• Clarion PU-1661B(D)
• RM2

Comments:

• If a CD changer has not previously been connected to the Peugeot radio, the CD changer support must be activated by the dealer. With us this can be achieved for only €37.95.
• It is not possible to combine this interface with an existing CD changer. Existing CD changer must first be disconnected.
• Before installing this module, the car radio must be disconnected from all cables except the antenna cable. Please note that in some cases a radio security code must be entered after disconnecting the wiring. So keep this at hand.
• Clarion RD3 PU-2295A car radio is not supported.

Supported car radios are usually found in the following Peugeot models*:

* Only in combination with one of the above-mentioned supported car radio / navigation systems.

Scope of delivery:

• The interface
• 2 year warranty
• Invoice
