Bluetooth streaming + hands-free car kit to AUX adapter for BMW E60 E61 E62 E63 E64 E66 E81 E82 E70 E90 from year 2004 with MASK / CCC

With this Bluetooth streaming / hands-free car kit module you can enjoy your favorite music that can be played wirelessly from a mobile phone or another Bluetooth device via your original BMW E60/E61 from year 2004 with MASK or CCC infotainment systems with active AUX functionality. .
The module also has hands-free calling / car kit functionality.

Product features:

• High quality Bluetooth chip. Sound transmission without distortion according to High Definition Standard
• Stream music wirelessly (A2DP), also via Spotify, Deezer.

• Hands-free calling / car kit (HFP)
• Music and telephony controls take place via your smartphone
• The radio must be in AUX mode to make phone calls or stream music
• Current stabilizer with integrated interference filter for clear sound
• Shock and interference resistant
• No loss of quality or interference (as with FM transmitters) thanks to the direct digital connection
• Easy installation, without damage to the original parts of the car
• Completely copper wire (tinned).

If you can switch your car radio to the AUX mode, then this Bluetooth interface can be used.
If this is not the case, the AUX functionality will not be activated by using this adapter.
To do this, you can go to the dealer to have the AUX functionality activated (if supported by your audio system).

The necessary AUX connection is located at the back of the radio (room C).

Power supply connection (room A):

Installation:

The 12-pin connector of this module is connected to the AUX port (located on the back of the radio) at the back of the radio.
The black wire must then be connected to ground (-12V) and the red wire to the switched (interrupted via ignition switch (ACC)) +12V.
The microphone should be installed in a logical location (as far away from the speakers as possible).
The module only becomes active when the car radio is set to AUX mode.

Scope of delivery:

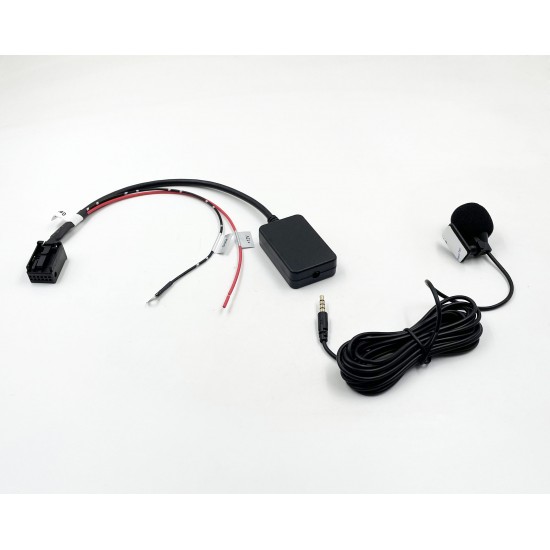

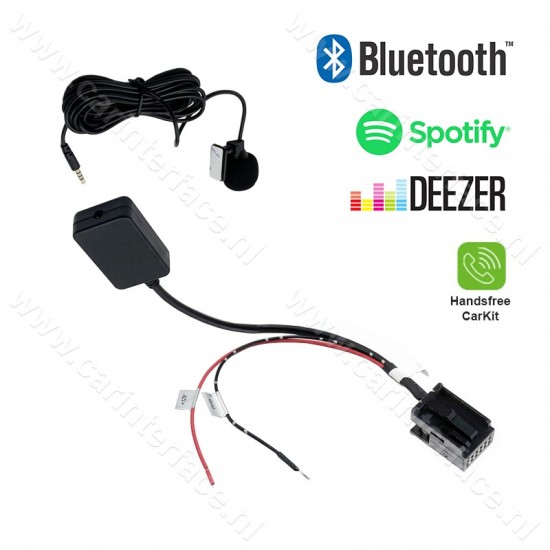

• The interface
• Microphone with 2m cable

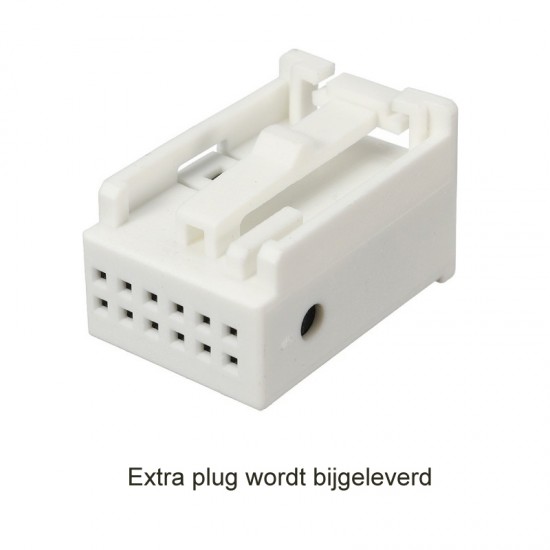

• White plug in case your E60 has a different version plug
• 2 year warranty
• Invoice

Please check whether the AUX port pinout on your car radio matches the connector on this Bluetooth module (interface / audio adapter) before placing an order!
