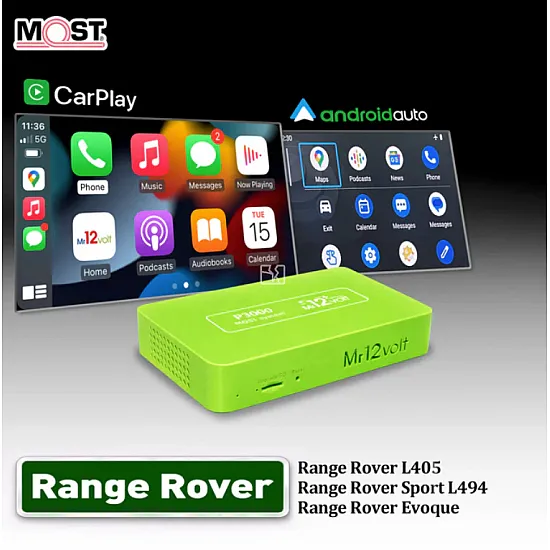

Mr12volt CarPlay / Android Auto for Range Rover and Land Rover infotainment systems. Direct MOST fiber-optic integration – No AUX required.
This high-quality interface for the Range Rover and Land Rover (model years 2011–2016) adds wireless Apple CarPlay and Android Auto functionality without compromising original features.
Compatible Range Rover and Land Rover models:
- Range Rover Evoque (L538) — 2011–2016
- Range Rover Sport (L320) — 2012
- Range Rover Sport (L494) — 2013–2016
- Range Rover Vogue (L405) — 2013–2016
- Land Rover Discovery 4 / LR4 (L319) — 2012–2016
- Land Rover Freelander 2 (L359) — 2012–2015
The interface integrates seamlessly with your original display, controls, and the MOST fiber-optic audio system for a superior experience.
Why choose MR12volt?
- Superior sound quality: Retain the full, crystal-clear quality of the original audio system.
- Full OEM integration: Control via original buttons and screens, just like a factory-installed feature.
- Speed and stability: Instant response and maximum stability.No glitches.A seamless experience that feels like an original factory option.
- Wireless convenience: Automatic connection to Apple CarPlay and Android Auto immediately upon entering the vehicle.
Features
- The most advanced Apple CarPlay and Google Android Auto (wired and wireless) interface on the market
- Wireless Miracast / MirrorLink (smartphone screen mirrored to the car's display)
- Integrated Bluetooth module for wireless music streaming (A2DP) in digital quality, controllable via vehicle controls. Supports display of track title, artist name, and album info.
Suitable for streaming audio from music, videos, navigation apps, podcasts, etc., from your smartphone through the car speakers. Compatible with apps such as Spotify, Deezer, Pandora, iTunes, YouTube, etc...
- Hands-free calling functionality, controllable via vehicle controls (AVRCP)
- USB port for playing audio and video files
- Inputs for front, side, and rear-view cameras;supports aftermarket cameras up to AHD1080 resolution (cameras not included)
- Support for Apple Lossless music streaming
- Siri activation via the steering wheel "Voice command" button"
- The only system of its kind that transmits audio via fiber optics (MOST) rather than AUX (unlike competitors), guaranteeing crystal-clear sound
- DSP chip with 15-band equalizer
- Support for the original Land Rover OEM microphone.No need to install an external microphone
- Compatible with Base and Harman Kardon Logic 7 sound systems
- MR12volt and Apple CarPlay / Android Auto are controlled via the original touchscreen
- 2x integrated antennas (WiFi and Bluetooth)
- Supported media types: Click here
⚠ Important installation notes

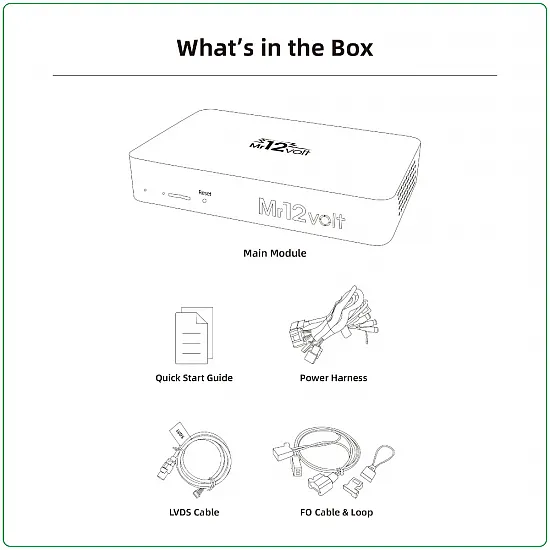

- If an original TV module is present, it must be bypassed using the supplied optical loop connector (included in the package)
- No coding required — MR12volt automatically activates the TV menu after installation, even if the vehicle did not have a factory-installed TV module
- Professional installation is recommended
Control method
MR12volt is accessed via the original TV menu.
- Select 'TV' in the infotainment system to start the MR12volt system
- MR12volt simulates the original (factory-fitted) TV module
- Once started, Apple CarPlay and Android Auto are controlled via the original touchscreen
- The 'Next / Previous' track buttons on the steering wheel are not supported ;this is a limitation of the original (OEM) controls when the system is in TV mode
Smartphone connectivity
- Wireless & / wired Apple CarPlay
- Wireless & / wired Android Auto
- Wireless MirrorLink (for Android – CarLetter app required)
- Use navigation (Waze, Google Maps, Apple Maps), Spotify, Apple Music, and WhatsApp directly on your original screen
Camera & / multimedia support
- Input for a reversing camera
- Input for a front camera
- Input for a blind-spot camera (left/right)
- Supports aftermarket cameras up to AHD 1080P resolution
- USB video and music playback
Retention of original factory functions
- Original OEM microphone remains active
- Display of factory parking sensors (PDC)
- Full steering wheel control
- Seamless switching between the original Audi interface and CarPlay / Android Auto
Advanced audio settings
- 15-band DSP equalizer
- Independently adjustable volume for navigation, media, and the microphone
- Support for high-res Apple Lossless audio
- Improved Bluetooth audio streaming and crystal-clear call quality thanks to the Qualcomm chip
Firmware & / Long-term supportSupport
- Easy software updates via the USB port.
- Ongoing compatibility updates for the latest iOS and Android versions.
Installation and demo video
2013–2015 Range Rover Sport L494 installation + demo
2011–2015 Range Rover Evoque L538 installation + demo
2012–2015 Land Rover Discovery 4/LR4 installation + demo
2014–2015 Land Rover Freelander 2 L359 installation + demo
2012 Range Rover Sport L320 installation + demo
