This Apple CarPlay / Google Android Auto / Mirrorlink multimedia interface / adapter is suitable for Porsche PCM 3.1 infotainment systems.
Suitable Porsche models with PCM 3.1:
- 911 (2012–2016)
- Boxster (2013-2016)
- Cayman (2013–2016)
- Cayenne (2010-2016)
- Panamera (2010-2016)
- Macan (2015–2016)
Characteristics
- The most advanced Apple CarPlay, Google Android Auto (wired and wireless) interface on the market
- Miracast / Mirrorlink wireless (image from the smartphone is projected on the car screen)
- Integrated Bluetooth module for wireless music streaming (A2DP) in digital quality and control via iDrive buttons. Support for title/artist name/album display on the display. Suitable for streaming sounds from played music, videos, navigation, podcasts, etc. on your smartphone through the speakers. Suitable for playing Spotify, Deezer, Pandora, iTunes, YouTube...
- Hands-free calling (car kit) functionality and control via the iDrive buttons (AVRCP)
- USB connection for playing audio and video files
- Front camera, side camera and rear camera inputs supporting aftermaket cameras up to AHD720 (cameras are not included)
- Support for Apple Lossless music streaming
- Siri activate via control button "Voice command"
- The only one of its kind where audio runs via fiber optic (MOST) and not via AUX as with competitors. This guarantees crystal clear sound
- DSP chip with 15 bar equalizer
- 2x integrated antennas (WiFi and Bluetooth)
- Everything remains original, operated via infotainment system buttons
- 100% Plug and Play, no wire cutting or soldering
- Supported media types: Click here
NB:

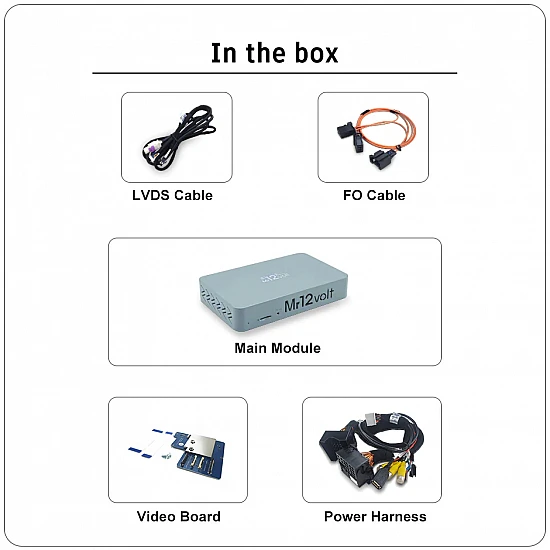

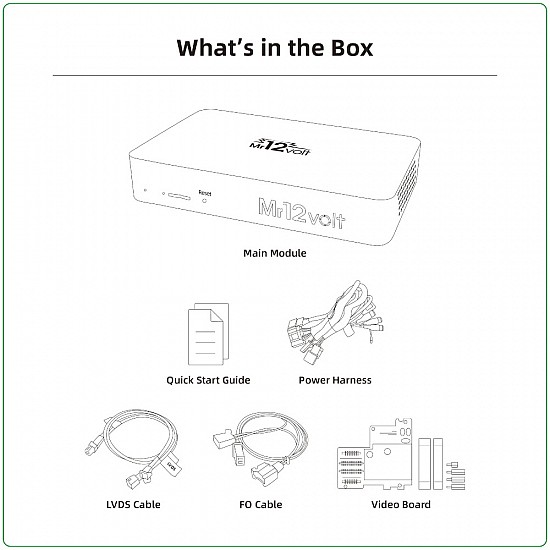

No coding or presence of factory TV module required. PCM 3.1 infotainment system needs to be modified. A supplied video card must be placed on the circuit board. This requires some electronics experience. Once Mr12volt CarPlay interface is installed, the “TV” icon will appear in the PCM home menu.
Mr12volt Carplay module supports OEM microphone, so external microphone needs to be installed anymore.

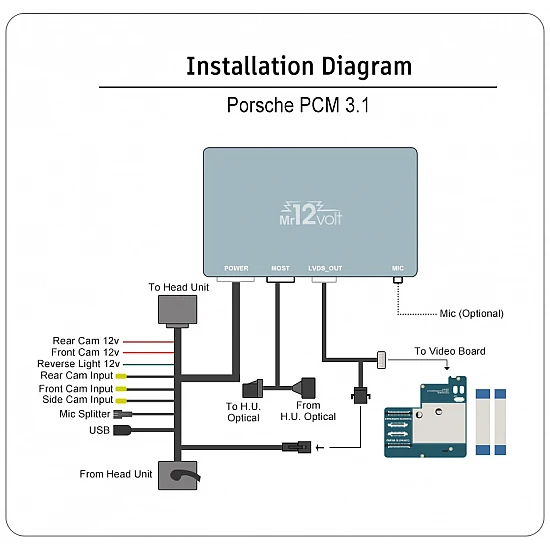

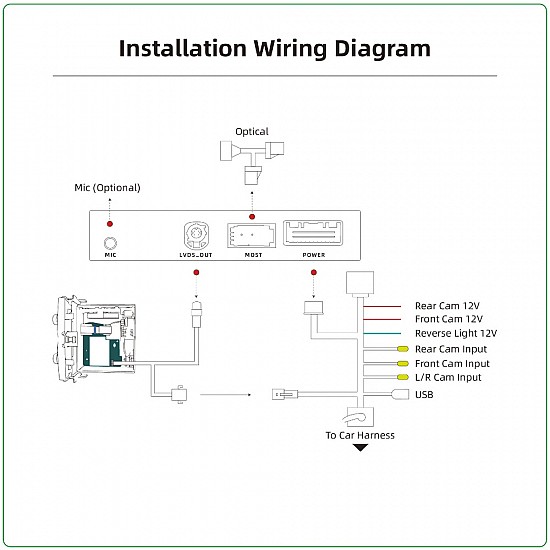

Installation example
https://www.youtube.com/watch?v=j8Hlks9uplk
Technical specifications
- Operating temperature: -20 to +80 degrees
- DAC resolution: 18Bit
- MP3 bit rate: 8 - 384 kbit
- Voltage: 10 - 14.6V DC
- Power consumption: 450mA (700mA when charging a smartphone)
- S/N ratio: 95dB
- Total Harmonic Distortion: 0.1%
- Frequency range: 20Hz - 20KHz
