This Mr12volt P3000-PM30 Apple CarPlay / Google Android Auto / Mirrorlink multimedia interface / adapter is suitable for Porsche PCM 3.0 infotainment systems.
Compatible Porsche models with PCM 3.0:
- Porsche 911 (997.2) - 2009 - 2012
- Porsche Boxster / Cayman (987.2) - 2009-2012
- Porsche Cayenne (9PA.2) - 2009-2010
Features
- The most advanced Apple CarPlay, Google Android Auto (wired and wireless) interface on the market
- Miracast / Mirrorlink (via Android – CarLetter app) wireless (smartphone screen is projected onto the car's display)
- Integrated Bluetooth module for wireless music streaming (A2DP) in digital quality and control via head unit buttons. Support for title / artist name / album display on the screen.
Suitable for streaming audio from music, videos, navigation, podcasts etc. on your smartphone through the speakers. Compatible with apps such as Spotify, Deezer, Pandora, iTunes, YouTube...
- Hands-free calling (car kit) functionality and control via steering wheel/radio buttons (AVRCP)
- USB port for playing audio and video files
- Front camera, side camera, and rearview camera inputs with support for aftermarket cameras up to AHD1080P (cameras not included)
- Support for Apple Lossless music streaming
- Siri activation via the steering wheel "Voice command" button
- The only one of its kind where audio is transmitted via fiber optics (MOST) instead of AUX like competitors. This guarantees crystal-clear sound quality
- DSP chip with 15-band equalizer
- Uses the original Porsche OEM microphone. No need to install an external microphone
- 2x integrated antennas (WiFi and Bluetooth)
- Everything remains original, control via infotainment system buttons
- 100% Plug and Play, no cutting of wires or soldering
- Compatible with Porsche Base and BOSE sound systems
- Supported media types: Click here
PLEASE NOTE:
No coding or presence of a factory TV module is required. The PCM 3.0 infotainment system must be modified. An included video card must be installed on the circuit board: Mr12volt CarPlay video card installation in PCM3.0.
This requires some electronics experience. Once the Mr12volt CarPlay interface is installed, the "TV" icon will appear in the PCM home menu. If a factory-fitted TV module is present, its MOST connector must be disconnected and bypassed using
the following separately available MOST LOOP.
The TV module will be replaced by this. All original functionalities, except TV reception, will remain operational.
The Mr12volt Carplay module supports the OEM microphone, provided OEM Bluetooth hands-free is activated in the boardnet. If your car has a built-in Bluetooth hands-free option, you can continue to use it for phone calls even while CarPlay is active.
Solution for OEM rearview camera not working correctly with P3000 installed.
For base audio (no FO cable in the car's wiring harness), follow this video to convert the supplied FO Y-cable into a direct male-to-male cable:
https://www.youtube.com/watch?v=YEEGcdquqJY

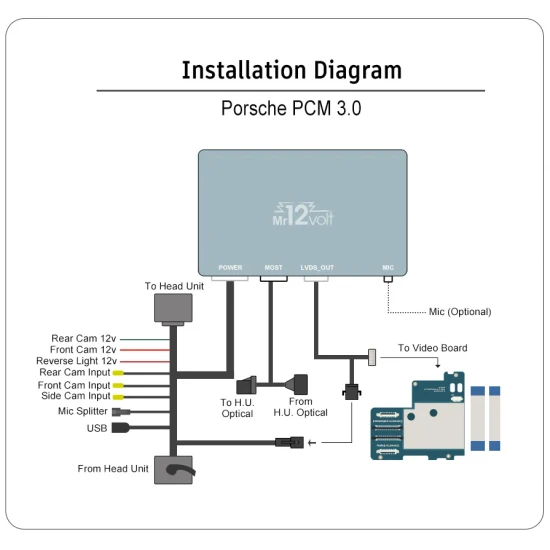

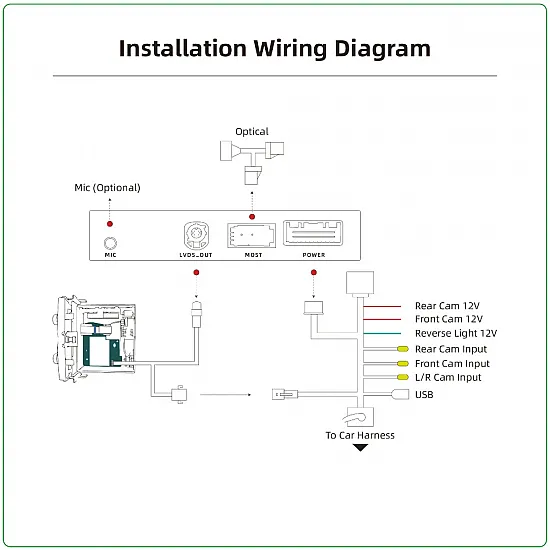

Installation Examples
General installation
Porsche 997.2 PCM 3.0
Installation with an empty optical output behind the PCM 3.0
