Bluetooth, MP3 USB, AUX input, interface adapter for NTG 1, NTG 2, Audio 20, APS 50 and Comand Mercedes-Benz radios

Digital Music Changer LP1603MB is an interface / audio adapter for a number of factory Mercedes-Benz car radios with a MOST optic fiber system.

This interface makes it possible to play music in MP3 and WMA format from a USB stick or a microSD card in CD quality via your car radio. The interface also has a 3.5mm AUX input / audio connection for external sound sources and an integrated Bluetooth module with which music can be streamed wirelessly and hands-free calling can be made.

This interface / audio adapter behaves like a CD changer and is also recognized as such by your car radio. This maintains the full functionality of your car. The interface is operated simply via the buttons on your steering wheel or via those on your car radio. CD and track numbers are shown on the display of your car radio.

The integrated Bluetooth module makes it possible to make hands-free telephone calls and to stream music wirelessly from a mobile phone or other connected Bluetooth device.

Product features

• Integrated Bluetooth module for wireless music streaming (A2DP) in digital quality and control via MMI buttons. Support for title / artist name / album display on the display of the MMI system. Suitable for streaming sounds from played music, videos, navigation, podcasts, etc. on your smartphone through the speakers. Suitable for streaming from Spotify, Deezer and Pandora, among others
• Hands-free calling (car kit) functionality and control via the MMI buttons (AVRCP)
• USB connection (USB version 1.1 and higher) for playing MP3, WMA and WAV files from a USB stick (FAT16 or FAT32 formatted, max. 32Gb)
• microSD card connection for playing MP3 and WMA files (FAT16 or FAT32 formatted, max. 32Gb)
• USB/SD music, 5 folders, 999 songs per folder, MP3 and WMA only
• AUX connection for an iPod, iPhone, MP3 player, tablet, telephone, GPS, PSP or other external sound source on the MMI fiber optic system for perfect sound reproduction. Please note that operating external devices via the AUX port is not possible. Audio input of the interface is a 3.5mm jack plug. The analog signal is converted into an optical digital audio signal (fiber optic), so that the audio quality is equal to that of the original CD changer
• Memory for the last playback position, which resumes playback when the radio is switched on and off
• Shock and interference resistant
• Easy installation, without damage to the original parts of the car

This interface / audio adapter supports the following Mercedes-Benz infotainment systems:

• APS 50, A, B, C class, Viano, CLK
• Audio 20, A-Class, B-Class, Viano, CLK, CLS, ML, GL

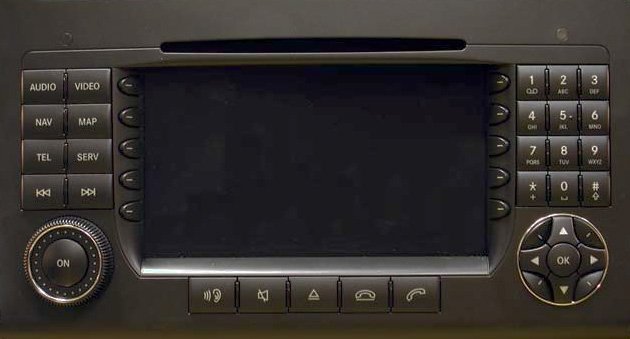

• Comand EU, A-Class, B-Class, Viano, CLK, ML, GL
• APS 50, CLS, CLK, W211, W219
• APS 50, CLS, CLK, W211, W219
• Comand EU, CLS, SLK, E-Class, W211, W219
• Comand MCS 2 (USA), ML, GL
• Comand S-Class
• Comand SL-Class
• Comand SLK-Class
• Audio 20 SLK-Class
• Comand SL-Class (USA)
• APS 50 SLK

Compatibility note:

• Comand NTG2.5 is not supported! It has a SD card slot on top of the device's screen.
• If the Mercedes has one of the next options: - 6 CD changer | OEM Phone module | external amplifier | external navigation box, it will work out of the box. Otherwise, coding of CDC is needed.
• Cannot be combined with an existing CD changer. Existing CD changer must be completely disconnected. If there is a 6 disc Cd changer in the trunk lid (applies to S, SL, CL class only), an optical loop / bypass must be placed on the MOST connector of the disconnected CD changer.
• If the Mercedes has an external OEM phone module, an additional optical loop connector is needed to bypass it in order to have the phone buttons on the steering to function properly (in case Mr12volt need to replace OEM carkit).

Supported car stereos are typically found in these Mercedes-Benz models*:

* Only in combination with one of the above-mentioned supported car stereo / navigation systems.

Scope of delivery:

• The MOST interface
• Microphone, cable length 2m
• AUX cable, cable length 80cm
• Fiber optic ring cable (Y-cable)
• Optical loop / bypass
• Power cable for connecting +12V constant and ground to the interface
• 2x Scotch Lock wire connectors
• User manual in English
• Invoice
• 2 year warranty
