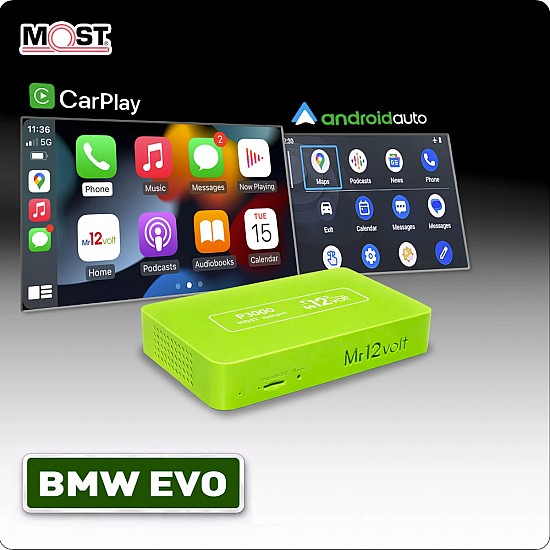

Apple CarPlay, Android Auto, Mirrorlink multimedia, camera Interface for BMW and MINI NBT EVO ID5 / ID6 (MOST)
- Brand: Mr12Volt
- Model: P3000-BMEV
- Availability: Sold out
- Ships within: 2-3 weeks
- Warranty: 2 years
Mr12volt CarPlay / Android Auto interface for BMW, MINI and Toyota Supra A90 with NBT EVO ID5 / ID6 infotainment systems. Direct MOST Fiber Integration – No AUX required
This high-quality interface for BMW, MINI and Toyota Supra A90 with NBT EVO ID5 / ID6 interface adds wireless Apple CarPlay and Android Auto without compromising original functionality.
Mr12volt interface integrates seamlessly with your original display, the iDrive controller, and the MOST fiber optic audio system for a superior experience.
Why choose MR12volt?
- Superior sound quality: Maintain the full, crystal-clear quality of the original audio system.
- Full OEM integration: Control via the original buttons and screens as if it were always there.
- Speed and stability: Instant response and maximum stability. No lagging. A seamless experience that feels like an original factory option.
- Wireless convenience: Automatic connection to Apple CarPlay and Android Auto immediately upon entering the vehicle.

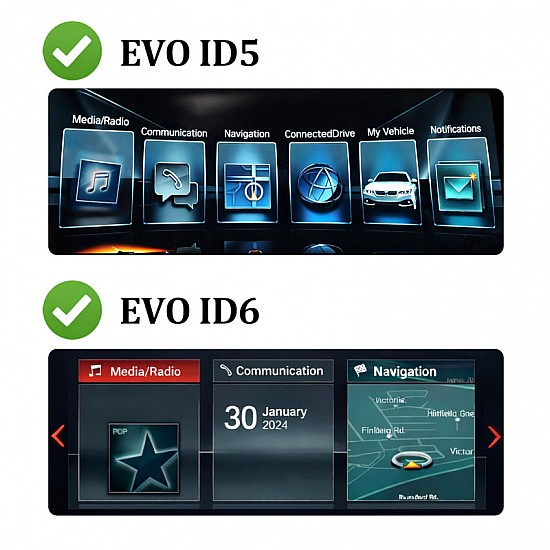

Compatible BMW, MINI and Toyota Supra A90 models with NBT EVO ID5 / ID6 System:
- BMW 1 Series (F20 / F21)
- BMW 2 Series (F22 / F23 / F45 / F46)
- BMW 3 Series (F30 / F31 / F34 / F35)
- BMW 4 Series (F32 / F33 / F36)
- BMW 5 Series (F07 / G30 / G31)
- BMW 6 Series (F06 / F12 / F13)
- BMW 7 Series (G11 / G12)
- BMW X3 (F25 / G01)
- BMW X4 (F26 / G02)
- BMW X5 (F15 / G05)
- BMW X6 (F16 / G06)
- MINI (F54 / F55 / F56 / F57)
- Toyota Supra A90 (BMW EVO ID5 / ID6 system)
Features
- The most advanced Apple CarPlay, Google Android Auto (wired and wireless) interface on the market
- Miracast / Mirrorlink wireless (projects smartphone screen onto the car display)
- Integrated Bluetooth module for wireless music streaming (A2DP) in digital quality and control via iDrive buttons. Support for title / artist name / album display on the screen. Suitable for streaming audio from music, videos, navigation, podcasts etc. on your smartphone through the speakers. Compatible with apps like Spotify, Deezer, Pandora, iTunes, YouTube...
- Hands-free calling (car kit) functionality and control via iDrive buttons (AVRCP)
- USB connection for playing audio and video files
- Front-view and rear-view camera inputs (cameras not included)
- Support for Apple Lossless music streaming
- Siri activation via the steering wheel "Voice command" button
- The only one of its kind where audio runs via fiber optics (MOST) instead of AUX like competitors. Crystal-clear sound is guaranteed
- DSP chip with 15-band equalizer
- Uses the original BMW OEM microphone. No need to install an external microphone
- 2x integrated antennas (WiFi and Bluetooth)
- Everything remains original, control via MMI buttons
- 100% Plug and Play, no wire cutting or soldering required

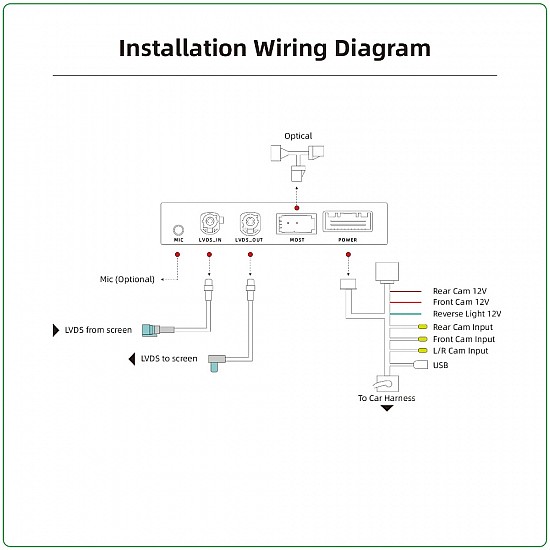

⚠ Important installation notes (BMW EVO system)
- TV coding required if no factory TV module is present.
- If a factory TV module exists, it must be disconnected and bypassed using the supplied optical loop.

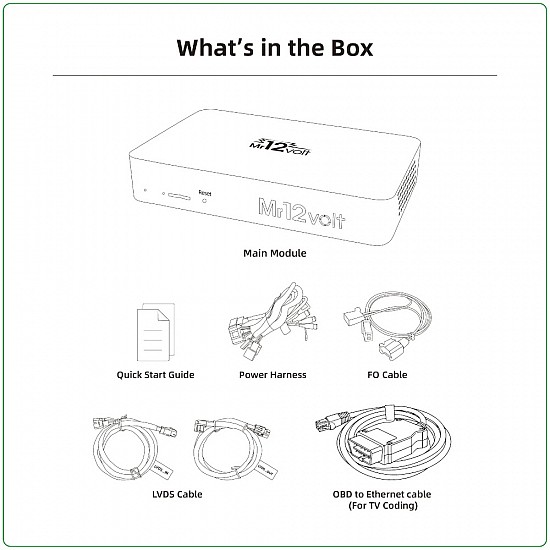

- The optical loop connector is included in the package.
- Professional installation is recommended.
Direct Digital MOST Integration
Unlike AUX-based CarPlay interfaces that rely on analog audio input, MR12volt integrates digitally through the MOST fiber optic network. This delivers true OEM-level sound quality.
| CarPlay solutions via AUX | MR12volt MOST integration |
|
|
⚠ Notice: Control Method
- The touchscreen function is NOT supported in the MR12volt and CarPlay / Android Auto menu.
- The system is controlled exclusively via the original iDrive controller.
Smartphone Connectivity
- Wireless & wired Apple CarPlay
- Wireless & wired Android Auto
- Wireless MirrorLink (Android – CarLetter required)
- Use navigation, Spotify, Apple Music, Waze, Google Maps, and calls directly on your original display.
Camera & Multimedia Support
- Reverse camera input
- Front camera input
- Left / Right blind spot camera input
- Supports aftermarket cameras up to AHD 720P
- USB video and music playback
Retention of OEM Features
MR12volt retains the following factory features:
- Original microphone
- Original camera functionality (front and rear)
- Factory parking sensors display (PDC)
- Factory climate display
- Steering wheel controls
- Switch seamlessly between the original interface and CarPlay / Android Auto.
Advanced Audio Settings
- 15-band DSP equalizer
- Independent volume for navigation / media / microphone
- Support for Apple Lossless
- Enhanced Bluetooth call clarity
- Bluetooth audio streaming
- Optimized for BMW factory audio systems.
Frequently Asked Questions (FAQ)
Is AUX required?
No. Direct MOST fiber optic integration.
Does it work with Harman Kardon & JBL systems?
Yes.
Does the iDrive controller remain functional?
Yes.
Is the screen replaced?
No.
Is coding required?
TV coding may be required depending on the vehicle configuration.
Is the system reversible (back to original)?
Yes.
Does it work on BMW EVO?
This version is suitable for both the Toyota Supra A90 and the BMW EVO system.
Which reverse camera is recommended?
MR12volt supports any aftermarket reverse camera up to AHD 720P resolution.
Firmware & Long-Term Support
- USB firmware upgrades supported
- Continuous compatibility updates
Installation Examples
BMW 425Li (2018) F32 / F33 / F36 NBT EVO installation video MR12volt
BMW X4 (2017) F26 NBT EVO installation video MR12volt
BMW X5 (2017) F15 NBT EVO installation video MR12volt
BMW 530Li (2017) F10 / F11 NBT EVO installation video MR12volt
BMW 740Li (2016) G11/G12 NBT EVO installation video MR12volt
