This Apple CarPlay / Google Android Auto / Mirrorlink multimedia interface / adapter with DSP is suitable for BMW CCC, M-Ask and M-Ask II infotainment systems.
Suitable BMW models with i-Drive CCC, M-Ask, M-Ask II (6.5"/8.8"):
- 1 series - E81, E82, E87, E88
- 3 series - E90, E91, E92, E93
- 5 series - E60, E61
- 6 series - E63, E64
- X5 - E70
- X6 - E71
- Z4 - E89
NB:
The interface works immediately if a CD changer was installed at the factory. If not, the CD changer support (CDC option) must be coded (activated) by the dealer.
Characteristics
- The most advanced Apple CarPlay, Google Android Auto (wired and wireless) interface on the market
- Miracast / Mirrorlink wireless (image from the smartphone is projected on the car screen)
- Integrated Bluetooth module for wireless music streaming (A2DP) in digital quality and control via iDrive buttons. Support for title/artist name/album display on the display. Suitable for streaming sounds from played music, videos, navigation, podcasts, etc. on your smartphone through the speakers. Suitable for playing Spotify, Deezer, Pandora, iTunes, YouTube...
- Hands-free calling (car kit) functionality and control via the iDrive buttons (AVRCP)
- USB connection for playing audio and video files
- Forward camera and reversing camera inputs (cameras are not included)
- Support for Apple Lossless music streaming
- Siri activate via control button "Voice command"
- The only one of its kind where audio runs via fiber optic (MOST) and not via AUX as with competitors. This guarantees crystal clear sound
- DSP chip with 15 bar equalizer
- 2x integrated antennas (WiFi and Bluetooth)
- Everything remains original, operation via MMI buttons
- 100% Plug and Play, no wire cutting or soldering

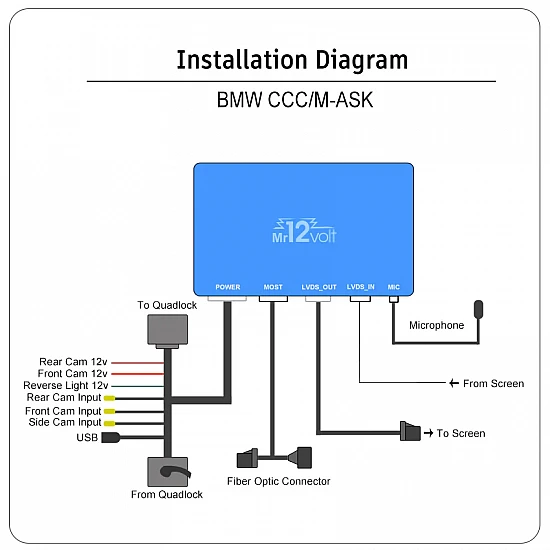

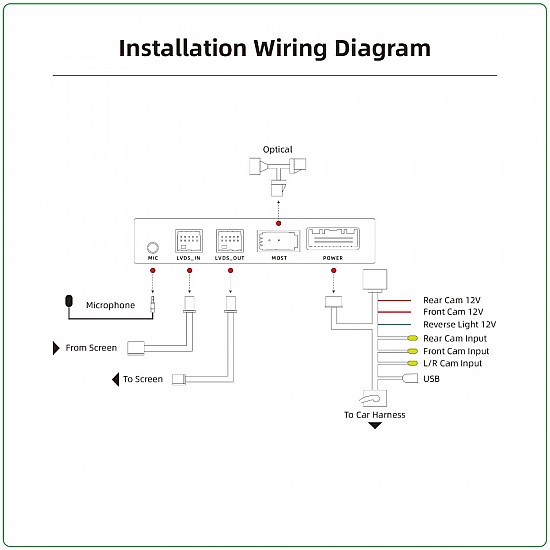

Installation examples
https://www.youtube.com/watch?v=NkTSOK3yWz8
https://www.youtube.com/watch?v=K8B3z5-36NI
Technical specifications
- Operating temperature: -20 to +80 degrees
- DAC resolution: 18Bit
- MP3 bit rate: 8 - 384 kbit
- Voltage: 10 - 14.6V DC
- Power consumption: 450mA (700mA when charging a smartphone)
- S/N ratio: 95dB
- Total Harmonic Distortion: 0.1%
- Frequency range: 20Hz - 20KHz
