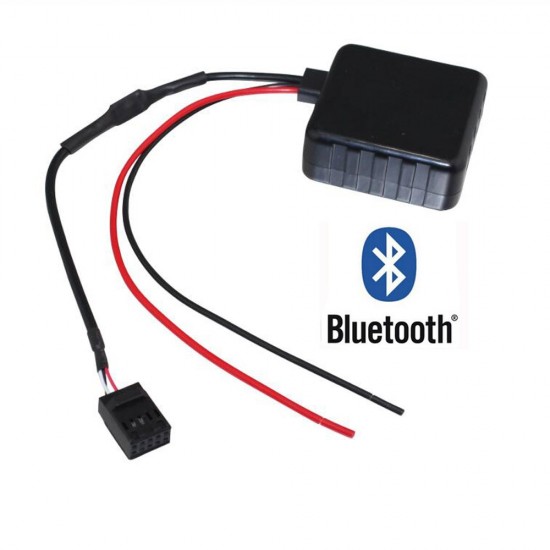

With this Bluetooth module you can enjoy your favorite music that can be played wirelessly from a mobile phone or another Bluetooth device via your original AUX capable Business CD car radios from BMW E46 from 09-2002. Suitable for iPhone, iPod, iPad, Samsung, HTC, Huawei, iOS, Android, Windows...
This cable is connected to the AUX port of your original BMW Business CD car radio using the 10-pin plug .
Only the following car radios are supported: BMW E46 built from 09-2002 or newer with a Business CD car radio.
Usually found in the following vehicles: 9/2002 - 2006 BMW (E46): 320i, 320ci, 320cic, 323i, 323ci, 323cic, 325i, 325ci, 325cic, 328i, 328ci, 328cic, 330i, 330ci, 330cic & M3 ( Coupe, Sedan & convertible).
Comments: Only suitable for streaming music and NOT for calling! This Bluetooth interface can be combined with a CD changer. Cable length: 15cm.
This module has an integrated interference filter / power stabilizer.
Installation:

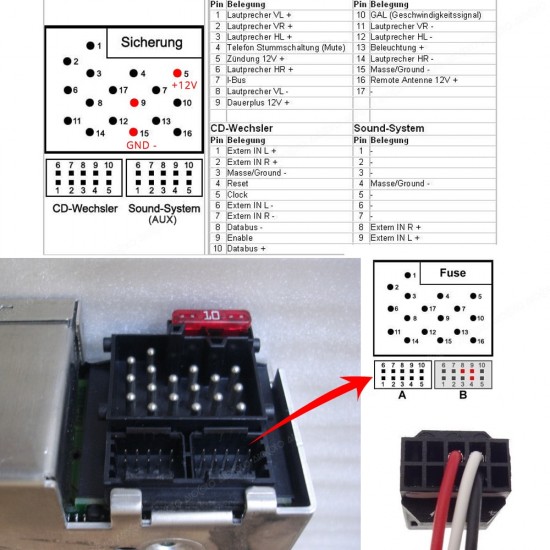

The 10-pin connector of this module is connected to the AUX port on the back of the radio (located on the back of the radio at the bottom right).
The black wire must then be connected to earth (-12V, point 15 in the image) and the red wire to the
switched (interrupted via ignition switch) +12V (point 5 in the image).
The module only becomes active when the radio is set to AUX mode by pressing the MODE button. Installation video of an AUX section. In addition, the red and black wires must be tapped according to the previous instruction (points 5 and 15).
NB! IF YOU DO NOT KNOW WHICH ADAPTER YOU NEED PLEASE CONTACT US FIRST! THIS IS TO PREVENT RETURNS.
